pocket knife mystery

In Tools and Hardware > Folding Knives > Show & Tell.
Folding Knives203 of 207Buck Cadillac KnifeCoca Cola Knife
10
Love it
1
Like it

tom61375tom61375 loves this.
PhilDavidAlexanderMorrisPhilDavidAlexanderMorris loves this.
pw-collectorpw-collector loves this.
SEAN68SEAN68 loves this.
miKKoChristmas11miKKoChristmas11 loves this.
lundylundy loves this.
blunderbuss2blunderbuss2 loves this.
MillerBros.MillerBros. loves this.
kerry10456kerry10456 loves this.
PeterNPeterN loves this.
officialfuelofficialfuel likes this.
See 9 more
Add to collection

Please create an account, or Log in here

If you don't have an account, create one here.


Create a Show & TellReport as inappropriate



Posted 4 years ago

Email

walksoftly
(164 items)

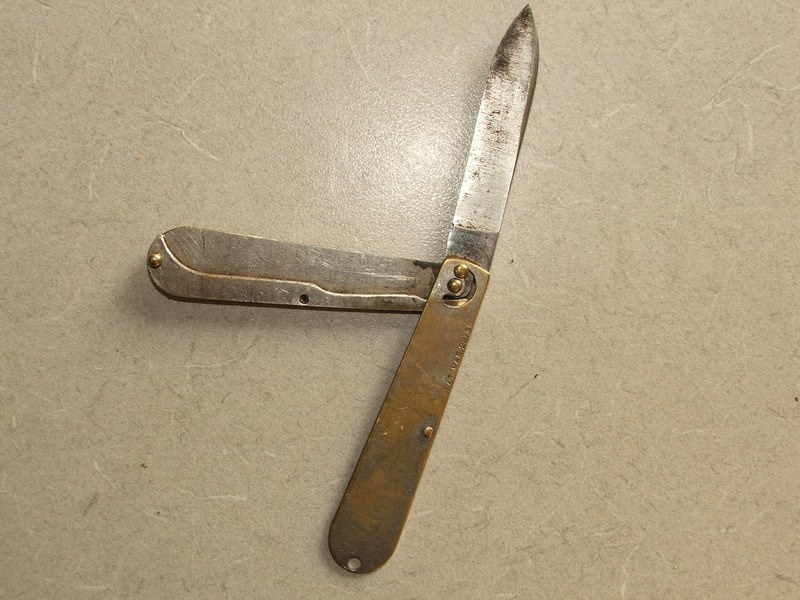

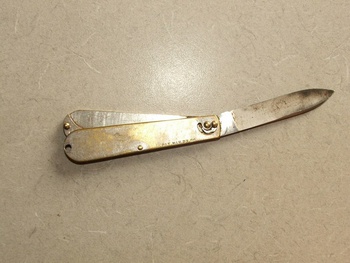

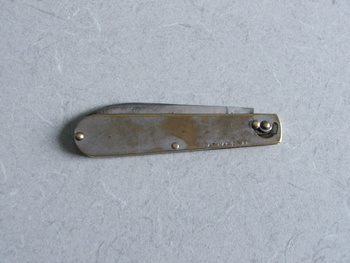

This knife had me stumped until I found the patent drawings, (you need a TIFF file reader to open link) to open it you pull out on the side panel at the left end. This releases it from the pin you then rotate it clockwise 360 degrees & place the side panel back on the pin. This locks the blade in place.
Reverse procedure to close.

Mystery Solved

Comments

  1. Mathews, 4 years ago
    When I was a boy (1950's) I had a pair of knifes similar to this. It was in a magic kit. There were two of them. One had white plastic handles on both sides and the other had one side white and the other black. They opened by pressing the blade in.
    This released the pin at the swivel point of the blade so it would spring out enough so you could open it up. Hope this might help in your search.
  2. walksoftly walksoftly, 4 years ago
    I've tried pushing the blade in, and I've tried pulling the pin out, neither works. If you look closely ( jewelers loupe) you can see a rub mark from the pin rubbing on the edge of the track.
  3. YardSaleDave, 4 years ago
    This looks to be an early version of the Axis or Arc lock. Keep playing with it until you get it opened, the tang stamp will tell us the rest of the story.
  4. walksoftly walksoftly, 4 years ago
    The knife appears to have a spring back lock as the right hand end ( pivot end) is free to move, and does so when you push down on the blade. The blade has no groove in it to pull it open. The placement of the pin in the slot requires that it move in a CCW roation, if the right pin is the pivot then the blade would have to pass through the body of the knife.
  5. Savoychina1 Savoychina1, 4 years ago
    while pushing down on the butt of the blade, try to move the pin in the slot CCW. If it won't move, try first to depress it and secondly, pull it out slightly. You might also try gripping the blade and sliding the whole blade back toward the pivot. Conversly, try sliding the blade forward and following the above instructions.
  6. YardSaleDave, 4 years ago
    Savoy has it right, depress the blade enough to take pressure off of the sliding pin, when released, the backspring should force the blade up enough to finger pinch it. If none of this works, the mechanism is froze up.
  7. walksoftly walksoftly, 4 years ago
    I don't think the mechanism is seized as it moves in freely, I have tried pushing down and back but that doesn't work. There isn't enough room on the heel of the blade to allow that much movement. How do I research the patent date, could be British, Canadian or U S.
  8. walksoftly walksoftly, 4 years ago
    I should rephrase that, it moves down into the body of the knife freely, and you can see the heel of the blade move and the back spring move out.
  9. walksoftly walksoftly, 4 years ago
    Mystery solved I found the patent and drawing, it's easy to open up when you know how. Here is a link to the drawing.
    http://patimg2.uspto.gov/.piw?docid=00338251&SectionNum=2&IDKey=BA8F331A91BF&HomeUrl=http://patft.uspto.gov/netacgi/nph-Parser?
    There is no manufacturer info on the knife.
  10. walksoftly walksoftly, 3 years ago
    Thanks for the love Bellin
  11. walksoftly walksoftly, 3 years ago
    Thanks for the love, PeterN.
  12. MillerBros., 2 years ago
    What was marked on the tang of the knife blade when you opened it?

    The link to the patent no longer works, how does it open?

    Thanks!
  13. walksoftly walksoftly, 2 years ago
    There is no mark on the tang of knife blade, I added two more pictures & changed the description.
  14. MillerBros., 2 years ago
    Thank you for the extra pictures!

    Man would I like to have a knife like this for my collection!

    Is it a U.S. patent?
  15. walksoftly walksoftly, 2 years ago
    You're welcome, pictures are worth a thousand words!
    It is a US patent & is referenced in many other patents.
    Thanks for stopping by & for your comments.
  16. walksoftly walksoftly, 2 years ago
    Thanks for the love kerry.
  17. MillerBros., 2 years ago
    Can you give me the patent number so I can look it up myself?
  18. walksoftly walksoftly, 2 years ago

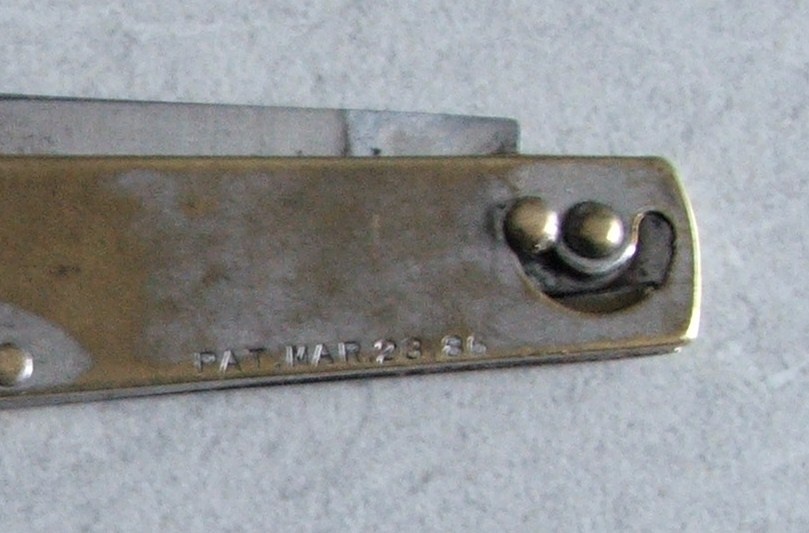

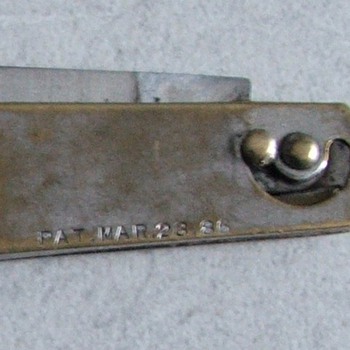

    The patent # is Patent Number: 338251
  19. walksoftly walksoftly, 2 years ago
    Thanks for the love, MillerBros, bb2, lundy, AR8 & miKKo.
    Thanks for adding the other info AR8, I enjoy showing it to people just to see the reaction when it won't open.
  20. MillerBros., 2 years ago
    Thanks for the info. I have read the patent thoroughly. It appears there was even a two blades version. I have seen several other knives that use a similar design to open and close the knife, this seems to be one of the earliest.

    Now to go out and find one of these for my collection, wish me luck!!
  21. walksoftly walksoftly, 2 years ago
    Good luck with your quest MillerBros, I hope you will share some of your collection with us.
  22. MillerBros., 1 year ago
    How do I contact you on this site? E-mail?
  23. PhilDavidAlexanderMorris PhilDavidAlexanderMorris, 1 year ago
    I think the older kids at school had these knives !~
