Could an Old-School Tube Amp Make the Music You Love Sound Better?

August 5th, 2015

PairV2

Like a lot of adults who attended too many rock concerts in their reckless youth, my hearing is not what it used to be. On more than one occasion, I remember stumbling out of Winterland in San Francisco after seeing high-watt bands like Hot Tuna or Pink Floyd, putting the key in the car’s ignition, giving it a turn, and then having no idea whatsoever if the engine had roared to life.

That’s what four or five hours of standing in front of a wall of speakers pumping music at more than 100 decibels will do to a person’s hearing—for the following 30 or 40 minutes, the world sounds soft and muffled, as if the air is thick with invisible clouds of cotton balls. At the time, it didn’t occur to me that I was doing lasting damage to the cochlea in my inner ear, and all these years later, I don’t necessarily wince at every sound that happens to be loud. But I do have trouble hearing someone speaking to me in a crowded restaurant, and certain sounds with the wrong acoustic profile (for me, anyway) will make my ears ring for hours.

“It doesn’t matter if it’s tubes, transistors, or a hamster on wheel. All that matters is that you got lost in the music.”

Most painful—emotionally and literally—is the mediocre fidelity of my home stereo system, which teases the listener with the occasional splash of treble or thump of bass, but mostly delivers cacophonous mush. It’s the opposite of what most people would describe as “warm,” which is a narrow, technical term of art among audiophiles. For the rest of us, warm suggests rich and rounded tones, notes and chords of such depth the listener can almost imagine he’s in the presence of the singer or musician performing without the aid of microphones or amplifiers. Warm is intimate, warm is clean and pure, warm doesn’t make my ears ring.

Uniquely, tube amplifiers, which use vacuum tubes to amplify electrical signals, are said to deliver this sublime auditory experience more reliably than their solid-state counterparts, which use transistors to do the same thing. (Digital devices run on integrated circuits, and use software to achieve their sound, so they are not considered here.) In particular, most tube amps are regarded as being less likely to create harmonic distortions at higher frequencies than all but the best and most expensive solid-state amps. They are generally worse at the lower frequencies, but our ears don’t hear most of those lower frequency distortions very well, which makes them “sonically benign.” Distortion at high frequencies, however, is easily heard and contributes to listening fatigue (i.e., ringing ears), which may be one of the reasons why tube amps are said to sound warm.

In the 1950s and '60s, hi-fi systems were marketed as technology that would improve the quality of your life, whether you were nesting (top, left; via Modern Mechanix), on the make (top, right; via Audio Karma), or bringing a Christmas turkey to the dinner table (above; via Retro Vintage Modern Hi-Fi).

In the 1950s and ’60s, hi-fi systems were marketed as technology that would improve the quality of your life, whether you were nesting (top, left; via Modern Mechanix), on the make (top, right; via Audio Karma), or bringing a Christmas turkey to the dinner table (above; via Retro Vintage Modern Hi-Fi).

I don’t know much about harmonics, but I can vouch for the sound quality of tube amplifiers. I grew up listening to music played through my parents’ Fisher 500-C stereo receiver, a tube amp from the early 1960s that did wondrous things to albums like “Let It Bleed” by the Rolling Stones when played at very high volumes. My ears never rang after listening to that, no matter how loud. The same could not be said for the Kenwood KR-7200 solid-state receiver I took with me to college—if memory serves, I sold it to a wide-eyed freshman early in my sophomore year.

Lately, the desire to replicate the warm auditory memories of my youth has become a musical preoccupation of mine, since I’m secretly—if only aspirationally—in the market for a new stereo. Sure, a tube amplifier won’t help me hear someone talking to me in a noisy restaurant, but it does promise relief from the worst sonic indignity of all—not being able to listen to the music I love at a respectable volume without destroying what’s left of my hearing. If tubes could do that, it would be nothing short of a miracle.

So, I went shopping. Not for equipment yet, but for knowledge. Is there something about the way in which tubes, or “valves” as they are known in the U.K., amplify sound that changes how we experience it once it finds its way through our ear canals and into our brains? And although I know what the word “warm” means to me, what does it mean to the audiophiles and the people who make tube amplifiers and other types of hi-fi stereo equipment for a living? To get answers to these and other questions, I spoke to some of the leading authorities and manufacturers of tube and solid-state amplifiers in the United States. And, the icing on the cake, I got to listen to best stereo system I’ve ever heard.

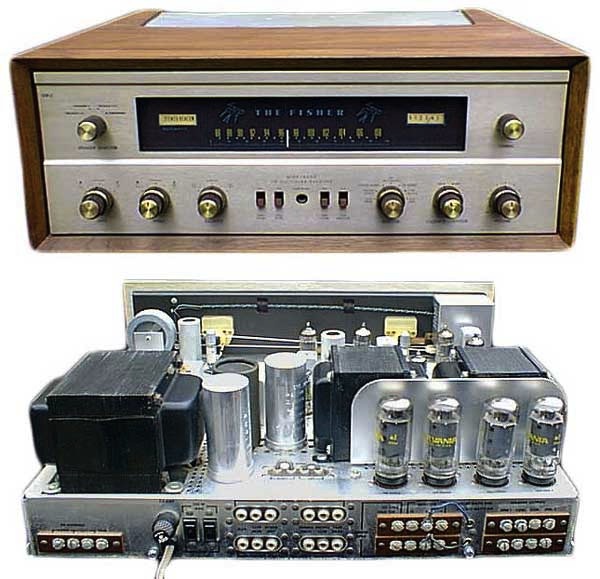

The author grew up listening to a Fisher 500-C, which was powered inside by no less than 18 vacuum tubes. Via US Audio Mart

The author grew up listening to a Fisher 500-C, which was powered inside by no less than 18 vacuum tubes. Via US Audio Mart

To begin, I consulted the highly regarded “Sounds Like?” audio glossary, written by the late, great J. Gordon Holt, who founded “Stereophile” magazine in 1962. According to Holt, warm describes sound that is “the same as dark, but less tilted.” In case you’re curious, “dark” refers to “the audible effect of a frequency response which is clockwise-tilted across the entire range, so that output diminishes with increasing frequency,” while “tilted” indicates an “across-the-board rotation of an otherwise flat frequency response, so that the device’s output increases or decreases at a uniform rate with increasing frequency.”

This is not at all what I was expecting. Turns out, my definition of warm (“intimate,” “clean and pure,” “doesn’t make my ears ring”) is too “euphonic” for Holt, which is a word he dismisses in the “E” section of his glossary as “pleasing to the ear” but having “a connotation of exaggerated richness rather than literal accuracy.”

Audiophiles, it seems, have no use for emotional words like “warm,” but isn’t “pleasing to the ear” what I want? In the world of high-end hi-fi, which is where you need to go if you want to learn anything meaningful about tubes and tube amplifiers, the answer to that seemingly simple question is just about always “no.”

Much to my surprise, the way in which tubes work is actually one of the reasons why just about every audio expert since Holt has been hesitant to ascribe emotional characteristics like warmth to sound, as I learned from a number of hi-fi authorities I spoke to, including Kevin Hayes, who runs Valve Amplification Company, or VAC, in Florida. Hayes has been making tube amplifiers for about 25 years. In the mid-1990s, when tube amps enjoyed their first mainstream post-transistor comeback, VAC made thousands of replicas of the Model 7 preamplifiers, Model 8B stereo amplifiers, and Model 9 monoblocks for Marantz, which along with McIntosh, Scott, Harmon Kardon, and Fisher was one of the leading home-electronics manufacturers of the late 1950s and early 1960s, the golden age of tubes. These days, VAC makes labor-intensive, obsessively perfectionist craft pieces, usually no more than 100 or 150 per year.

The basic triode vacuum tube has three parts—the cathode in the middle, the grid that surrounds it, and the anode beyond that. Pins deliver electrical charges to these various parts. Via Electronic Design

The basic triode vacuum tube has three parts—the cathode in the middle, the grid that surrounds it, and the anode beyond that. Pins deliver electrical charges to these various parts. Via Electronic Design

All those years of working with tubes have made Hayes more than a casual observer of 12AX7s, 300Bs, 845s, and other types of triode tubes. “The triode is the most common type of tube in audio amplifiers,” Hayes explains to me over the phone. An hour or so later, I had learned that a triode vacuum tube has three main elements, arranged inside its glass housing, or envelope, in a concentric fashion. The inner element is called the cathode, which is surrounded by a coil-like length of electrically charged wire referred to as the grid, beyond which is a ring of sheet metal called the anode, or plate, which is shaped, Hayes says, kind of like a small can with no top or bottom. When the cathode is heated to around 2,000 degrees Fahrenheit, either directly or indirectly, the electrons on its oxidized surface are released into the vacuum, where the charge of the grid propels them toward the anode.

A little bit of heat here, the release of some electrons there, and just like that, a small electrical signal has been converted into a mighty jolt of AC voltage. And that, in a grossly oversimplified nutshell, is the definition of amplification.

Tubes, though, are more than just elegant voltage amplifiers—they are excellent linear voltage amplifiers, which means that when you increase the input going into the tube, you end up with an almost perfectly proportional increase on the other end. That makes tubes easier to work with than solid-state parts, as Charley Hansen of acclaimed solid-state audio-equipment manufacturer Ayre Acoustics knows. “If you know how to solder and the basics of electronics,” he says, “you can make a tube amplifier that’s going to sound really, really good, almost guaranteed.”

In contrast, you can’t just buy a solid-state version of a tube and swap it out it, one for one. It takes a small handful of solid-state parts to replicate what a tube does. Each of those parts can introduce an acoustic artifact that must be corrected, forcing solid-state circuit designers to employ tricks like negative feedback, in which the output of the amplifier is re-injected into the input to achieve the inherent linearity produced by tubes. Negative feedback is actually widely used in almost all amplifiers, be they tube or solid-state, although Hansen does not resort to it in Ayre products, and thinks it’s a detriment to either technology.

From the beginning, tube brands associated themselves with high fidelity. The tube advertised here is a pentode, which has five interior elements instead of three, like a triode. Via <a href="http://vintagevacuumaudio.com/">Vintage Vacuum Audio</a>

From the beginning, tube brands associated themselves with high fidelity. The tube advertised here is a pentode, which has five interior elements instead of three, like a triode. Via Vintage Vacuum Audio

“The best triode tube is very close to perfectly linear,” continues Hayes. “The best transistor is more likely to have a sharp bend somewhere along the line, which must be corrected. Transistor-amplifier designers have a complicated job of transforming these bends into a facsimile of linear at output. To their credit, they’ve gotten very good at doing that, but you have to use more parts, and the more parts you have, the more secondary effects there are.”

Charley Hansen knows these parts as intimately as Hayes knows tubes. Hansen’s company in Boulder, Colorado, is highly regarded for the magic it works with capacitors, rectifiers, field-effect transistors, and other solid-state goodies—without resorting to feedback to achieve linearity. Hansen’s wizardry with solid-state audio circuitry is so renowned, he was selected by Neil Young himself to produce the audio circuit for the rock-star’s portable music player, the Pono, which is sort of like having Babe Ruth choose you as the guy to make his bats. And when Hansen really gets it right, as in the solid-state circuit he designed for Ayre’s KX-R Twenty preamp, the result is said to replicate the sound of—wait for it—tubes.

Neil Young's portable PonoPlayer uses an audio circuit designed by Charlie Hansen of Ayre Acoustics.

Neil Young’s portable PonoPlayer uses an audio circuit designed by Charley Hansen of Ayre Acoustics.

Like me, Hansen grew up listening to music played through tube amplifiers. Unlike me, Hansen got his hands dirty building them before he was 10 years old. “When I was 3 or 4,” he recalls, “my dad, who was an electrical engineer, bought a Dynakit tube amplifier, which he put together. Prior to that, he had bought a cabinet, made a mono Eico EF-12 tube amplifier from a kit, bought a turntable and a speaker, and put it all in the cabinet. When he upgraded to the Dynakit, I put the Eico in a case, the speaker in a cabinet, and the turntable on a stand. That was my system in the 1960s, when you could still buy tubes.”

In the late 1960s and early 1970s, electronics manufacturers started bailing on tubes because solid-state components were all the rage. In part, it was because the electronics industry wanted something new to sell (sound familiar?), but transistors represented a major improvement over tubes, even if it was a hassle to replicate their linearity, for the simple reason that unlike tubes, solid-state components did not wear out.

“Tubes are it, tubes are the ultimate, but tubes are completely messed up,” Hansen says. “They wear out the minute you turn on a piece of equipment.”

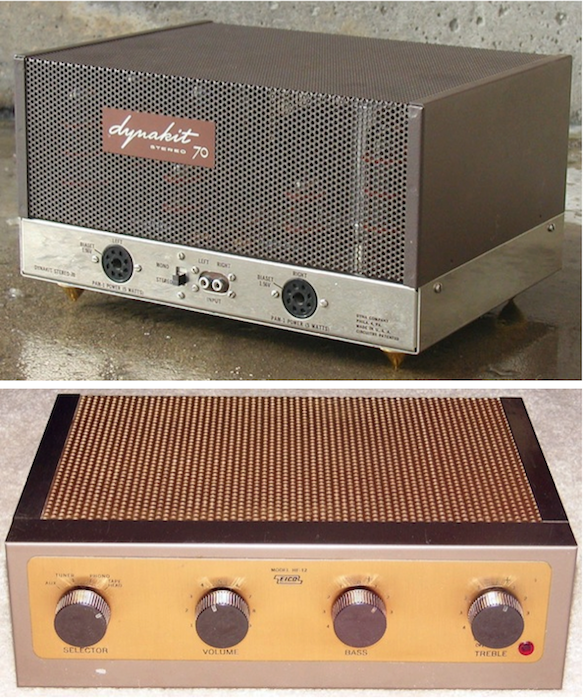

When Hansen’s father built a Dynakit amplifier like this one (at top; via Seventies Stereo), he inherited his dad’s Eico-12, like the one above (via Vintage Vacuum Audio).

When Hansen’s father built a Dynakit amplifier like this one (at top; via Seventies Stereo), he inherited his dad’s Eico-12, like the one above (via Vintage Vacuum Audio).

For Hansen and millions of other hi-fi-equipment consumers, this is a deal-breaker, even though many of these same people are untroubled by the planned obsolescence of the portable music devices they carry around in their pockets.

Buying a cool new music player, though, at least rewards a consumer with some new bells and whistles to play with. Wondering when a particular tube in your stereo is going to die, and remembering to plan for this absolute certainty, is more like getting excited about a trip to the dentist.

Besides, most of us can’t remember to change the batteries in our smoke alarms twice a year, and you can buy batteries in any grocery store. In contrast, the smallest power amp VAC makes, the Phi 200, has eight tubes—four are KT88s (power tubes that last anywhere from 6,000 to 8,000 hours before failing, and which cost between $40 and $400 each from specialized online retailers) and four 6SN7s (dual triodes, which last from 10,000 to 15,000 hours and range in price from $20 to $90 each).

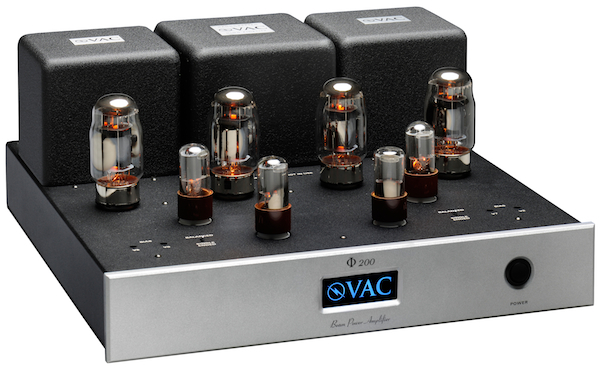

The smallest tube amp VAC makes has eight vacuum tubes, which wear out at different rates.

The smallest tube amp VAC makes has eight vacuum tubes, which wear out at different rates.

It gets worse: Power amps are just the devices the speakers are hooked up to, and some people swear by the sound of what are called monoblocks, which are speaker-specific power amps, one for the left channel, one for the right. In front of the power amp, or pair of them if you go the monoblock route, is the preamp, which is what you plug your CD player, tape deck, and other components into. Some audiophiles also purchase what are called phono stages, which are specialized preamps that have been designed expressly to correct the imperfect equalization that is deliberately designed into all vinyl records (they have more high frequencies than low). All of this means there may be another dozen or more tubes, per component, that a music lover must remember to replace.

How often does this replacing occur? Well, taking the worst-case scenario of 6,000 hours, that’s roughly the equivalent of every live concert by the Grateful Dead during its 30-year performing history, including its 37 shows in 1974 that were amplified by 48 McIntosh MC2300 amps, producing 28,800 watts of power for the band’s famous Wall of Sound. If you listened to just one of the shows from the Dead’s catalog per day, it would take you about five-and-a-half years to experience the whole thing. At that point, you’d know it was time to change your tubes—or some of them, anyway, since tubes wear out at different rates—but by then your wife would probably have filed for divorce, so you’d likely have other things on your mind.

The Grateful Dead's "Wall of Sound" from 1974 was driven by 48 McIntosh MC2300 amps, producing 28,800 watts of power. A stack of the amps can be seen behind bassist Phil Lesh. Images courtesy <a href="http://www.rpechner.com/">Richard Pechner</a>

The Grateful Dead’s “Wall of Sound” from 1974 was driven by 48 McIntosh MC2300 amps, producing 28,800 watts of power. A stack of the amps can be seen behind bassist Phil Lesh. Images courtesy Richard Pechner

“Generally speaking, a tube will last anywhere from 2 to 20 years,” says Hayes, getting as specific as it’s apparently possible to get, “depending on how much someone listens. But I have tubes that were made in the 1930s that still sound glorious.”

By this point, I was more than ready to hear “glorious,” to experience for myself the sonic beauty of “warm,” but playing the role of devil’s advocate, Hayes wanted to make sure I knew what I was getting into. Those tubes he has from the 1930s, for example, are the exceptions rather than the rule. Most tubes go bad much sooner, and in all sorts of entertaining ways.

The most common failure scenario for a tube is for the oxide on the surface of the cathode to essentially run out of electrons to release when it’s heated. That means there’s basically nothing to send to the anode to produce amplification. The problem with this type of failure, though, is that if you have an amp that doesn’t seem to be delivering what it used to, how do you know which tube is bad? New McIntosh tube amps actually glow green when everything is a-okay and red when the tube has failed, while the VAC Statement 450 iQ delivers an alert, but what about the vast majority of tube amps out there that just begin to sound crappy?

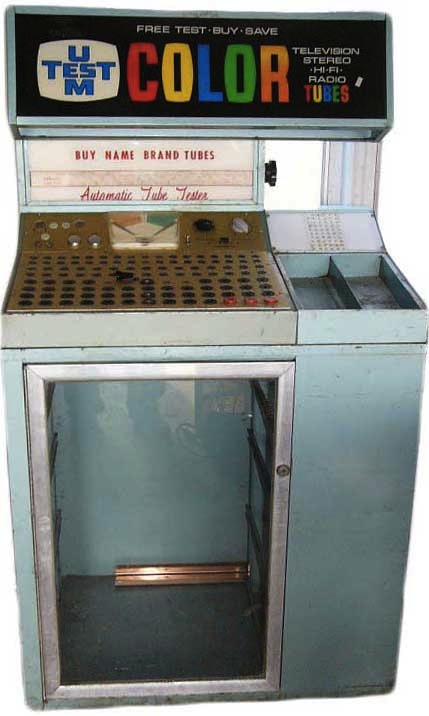

Tube testers like this one were common in U.S. drugstores throughout the 1950s and well into the 1960s. Via Canuck Audio Mart

Tube testers like this one were common in U.S. drugstores throughout the 1950s and well into the 1960s. Via Canuck Audio Mart

In the 1950s and first half of the ’60s, checking the quality of a tube was simple, since just about every drugstore sold tubes and offered customers a machine for testing the tubes in their radios, televisions, and home stereos. Today, some enterprising online tube retailers make up for this lack of basic information by selling packages that allow you to upgrade, say, all 11 of the tubes in your older McIntosh MC275 at once, which is undeniably convenient but both wasteful and costly (expect to pay about $500 for this type of routine maintenance).

Some failures are simple to spot, such as a crack in the tube’s glass envelope, which causes the silver-black coating on the top-inside surface of a tube to turn white. Other tube malfunctions, though, are downright insidious.

“If you’re hearing sputtering, kind of like the sound of a thunderstorm coming in over an AM radio,” Hayes says, “that’s typically the result of some of the oxide on the cathode condensing after the tube cools down, either on the grid or the disc that holds the tube elements in place. The condensed coating forms conductive pathways, allowing a bit of current to conduct between elements that shouldn’t. Those pathways break and re-form, resulting in this random sputtering noise. Technically, nothing has worn out, but cross-contamination has occurred inside the tube.” In other words, the tube may still have plenty of life left in it, but you wouldn’t want to use it.

Lest it go without saying, solid-state circuits don’t do this sort of thing.

A print ad for McIntosh, probably the most revered of the early hi-fi audio manufacturers. Via Vintage Vacuum Audio

A print ad for McIntosh, probably the most revered of the early hi-fi audio manufacturers. Via Vintage Vacuum Audio

Tubes are also microphonic, says Hansen. “If you tap on a tube, especially in a phono stage, you will hear very loud noises coming through your speakers. I’m fairly convinced,” he adds, “that much of the ‘depth’ from tubed gear is literally just the sound of the speakers vibrating the tubes and creating an acoustic feedback loop, much like reverb in a guitar amplifier. Pleasant? Yes. Accurate? Probably not.”

Nor are all new tubes created equal, which has always been the case but seems more pronounced now that practically all new tubes are made in China and former Soviet Bloc countries. The last major U.S. tube manufacturer was a company called MPD, which made tubes in the old General Electric plant in Owensboro, Kentucky, until the mid-1990s. Today, the vast majority of the world’s vacuum tubes, most of which are produced for guitar amplifiers, are made in just a few factories in China, Russia, the Czech Republic, the Slovak Republic, and Canada.

As a curious side note, the tube industry in the former Soviet Bloc is actually a product of the Soviet military’s paranoia. Vacuum tubes are more immune to electromagnetic pulses, one of the many effects of a nuclear blast, than solid-state circuits. Therefore, the Soviet military kept a fully operational, tube-based communication system going long after solid-state circuits had become the norm in commercial applications. That way, Soviet generals on the ground would be able to communicate with crews aboard their nuclear-armed MiG fighters that might still be in the air, even as nuclear warheads are exploding below. Tubes would provide the Soviets with a critical communications lifeline, although that’s probably the wrong word to describe the state of humanity post-World War III.

David O'Brien was an engineer at McIntosh who conducted in-store amplifier clinics from 1962 to 1991. He's seen here next to a pair of MC2300s. Courtesy Roger Russell's McIntosh History Page

David O’Brien was an engineer at McIntosh who conducted in-store amplifier clinics from 1962 to 1991. He’s seen here next to a pair of MC2300s. Courtesy Roger Russell’s McIntosh History Page

Today, opinions about the quality of the tubes being made in the former Soviet Bloc and China vary wildly. Ken Kessler, who literally wrote the book on McIntosh—his coffee-table tome is called “For the Love of Music”—and has been an audio-equipment reviewer for more than 30 years, believes consumers can get very good tubes today. That, he says, has not always been the case.

“The one thing true today that 25 years ago no one would’ve believed is that the quality of tubes is no longer an issue,” Kessler says. “There are still some pretty crappy tubes out there, but you get what you pay for. I use tubes from EAT,” he adds, “which is based in the Czech Republic. Good tubes cost more than $15 or $20. In some cases, you could add a zero.”

Kessler is not exaggerating. Remember VAC’s Phi 200 amplifier, the one whose KT88 tubes range in price from $40 to $400 each? The EAT tube is the one at the high end of that spectrum.

Most tubes are somewhere in between. “A receiver tube is a consumer-grade tube, so it’s got to be cheap,” Charley Hansen says of tubes made for home electronics. “Receiver tubes have indirectly heated cathodes, which means they have much shorter lifespans than industrial tubes with tungsten filaments.”

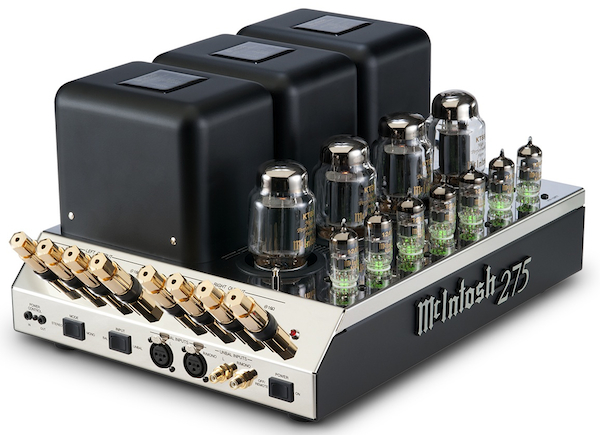

Today, the latest incarnation of the McIntosh 275 (the first one was produced in 1961) features tubes that glow green when they are working properly and red when they have failed.

Today, the latest incarnation of the McIntosh 275 (the first one was produced in 1961) features tubes that glow green when they are working properly and red when they have failed.

During the heyday of tube-based home electronics, drugstores sold tubes like they do batteries today. “They were designed to last a few years,” Hansen continues, “basically until the warranty was up. In the ’50s, if you bought a TV set, it might have a two or three-year warranty, which was about the life of the tubes. If it failed after that, it wasn’t the manufacturer’s problem. You’d just go down to the drugstore with a handful of tubes, plug them into a tube tester, and buy some new ones. They were designed to be disposable.”

That ethos, Hansen cautions, is alive and well today. “Do you think those guys in Russia or China give a shit how long their tubes last? Hell, no. They want them to wear out so you’ll buy another one.”

Though hardly a tube-industry cheerleader, Hayes has a more nuanced view of the tubes he selects for new VAC amps. “There are some really fine-sounding tubes being made today,” he says. “In fact, surprisingly, some of the tubes coming out of China are measurably more linear than ones that came before. For example, the original spec for one of the most commonly used tube, the 12AX7, had a certain amount of non-linearity to it. The Chinese manufacturers have actually reduced that, so some interesting things are going on.”

One of McIntosh's toughest competitors was Marantz, whose Model 7 preamp was reissued by the company and manufactured by VAC. Via Vintage Vacuum Audio

One of McIntosh’s toughest competitors was Marantz, whose Model 7 preamp was reissued by the company and manufactured by VAC. Via Vintage Vacuum Audio

Finally, and of almost no concern to any of the experts I spoke to, there’s the most surprising characteristic of tubes for people who have grown up with iPods or solid-state gear—their heat. Heating a tube’s cathode to 2,000 degrees Fahrenheit is what makes it glow, which means tubes not only make music sound warm, they throw off a fair amount of heat. “I typically listen to tube units in the winter,” jokes Steve Rowell of high-end audio retailer, reseller, and repair shop Audio Classics in upstate New York. “That way I can use their heat to warm the house.” Generating so much heat, though, requires a lot of energy, far more than is needed by their solid-state cousins, which means tube amps, though sonically appealing and undeniably cool to look at when they are glowing amid the rest of your hi-fi components, are also agents of climate change.

Given their high cost, unpredictable failure profile, variable quality, and carbon footprint, why does anyone bother with tubes at all? Well, it comes back to their sound, which by now I was positively itching to hear.

For Luke Manley, owner of Vacuum Tube Logic, better known as VTL, the sound of music played through tube amplifiers is as close as electronic audio is ever going to get to live, unamplified music—be it the sound of the human voice or an instrument like an acoustic guitar or grand piano—which is the reference point for all of VTL’s products, the bar against which everything else is measured. Manley finds this reference point with the help of his wife, Bea Lam, who is VTL’s operations manager and arguably the company’s most important pair of ears.

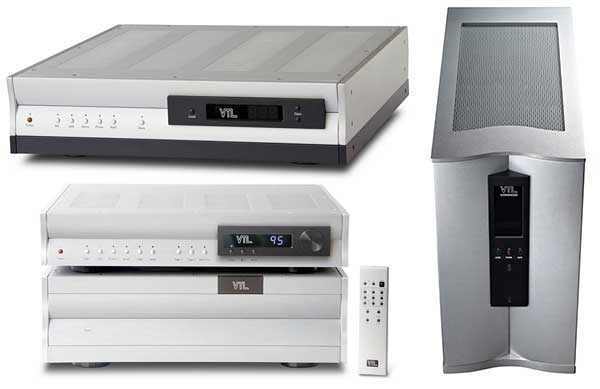

VTL components the author listened to at the home of Luke Manley and Bea Lam included at TP-6.5 Signature Phono Stage (top left), a preamp called the TL-7.5 Reference Linestage (bottom left), and two VTL Siegfried Series II Reference monoblock power amplifiers (only one of which is shown here).

VTL components the author listened to at the home of Luke Manley and Bea Lam included at TP-6.5 Signature Phono Stage (top left), a preamp called the TL-7.5 Reference Linestage (bottom left), and two VTL Siegfried Series II Reference monoblock power amplifiers (only one of which is shown here).

Here’s how they do it: “As soon as the engineer has a prototype, we go into the listening room,” Lam says. “Usually, I play a chamber-music piece first. That allows me to listen to the individual tonal color, or timbre, of the violin, viola, and cello. Then I might move on to a larger orchestral piece, to see if the prototype can reproduce the broader orchestral sound.” In some cases, Lam is very familiar with the pieces she’s listening to because she’s played them before on the piano. I would probably describe Lam as a pianist, but she won’t go that far, calling herself “a lifetime student” of the instrument. “Piano music is especially important to me,” she says.

Lam speaks of music as if it’s three-dimensional, a form with mass, shape, and weight, not merely a combination of sounds that occur, are heard, and then fade into the void. “Sometimes I will say, ‘Luke, I’m hearing the individual instruments but not the whole.’ That sense of the each instrument coming together to create a whole is very important. It’s not enough to reproduce each instrument by itself. The palpability of the music is very important.”

“When you play a large-scale symphonic piece, that’s where the rubber meets the road.”

Communicating what Lam is hearing to VTL’s engineers is Manley’s job. “I try to resolve the measurements we’ve seen on the bench with what Bea says she’s hearing,” he says. “What we look at depends on her description of the sonic characteristic. If she says it sounds dark or rolled off, then we look at frequency response. If it sounds like everything’s there but it’s just not that engaging, if it’s sort of boring sounding, then we check to see if we’ve got too much feedback somewhere. If it’s got muddy bass, we look at the bass response. These are things that you can’t measure easily with test equipment, so we listen to go further.”

After a product goes back to the engineers for redesign and improvement, it’s returned to the listening room for another round with Lam, and the process continues until Manley and Lam feel like they’ve gotten it right. “Critical listening is an iterative process,” Lam says. “I know it should be objective in that I’m trying to be the ears of all listeners,” she adds, “but in actuality it’s quite subjective because I’m in the equation.”

According to Hayes, that’s always been perfectly fine with audiophiles and the people who make gear for them. “There was an engineer named Daniel von Recklinghausen, who worked for H.H. Scott back in the 1950s and ’60s. He always said, ‘If it measures good and sounds bad, it is bad. If it measures bad and sounds good, you’ve measured the wrong thing.’ The sounds we can measure easily aren’t the same sorts of things the ear and brain naturally key in on. It’s a very different process than a bench test.”

A detail from an ad for H.H. Scott from the early 1960s. Via <a href="http://vintagevacuumaudio.com/">Vintage Vacuum Audio</a>

A detail from an ad for H.H. Scott from the early 1960s. Via Vintage Vacuum Audio

John Marks of “Stereophile” could not agree more. “We have a very elegant hardwired system when it comes to sound,” he says of the connection between the ear and the brain. The involuntary startle reaction, he says, is a good example of the system’s sophistication. “When you hear a sharp sound off to the left, your eyes immediately begin moving in that direction, totally unconsciously. Your eyes know which way to go because of the head-related transfer function of the sound hitting one eardrum first and then, a certain amount of time later, wrapping around the head and hitting the other eardrum. The head-related transfer function gives you 180 degrees of horizontal localization, a survival mechanism hardwired from evolution.”

Ears also pick up sounds that bench tests miss. “The ear can hear very sharp, brief, transients, such as the start of notes, or the little scratchy sounds that the microscopic hairs on a violin bow makes,” Marks says. “All of these teeny, tiny sounds are not represented in bench tests,” he says, and there is no standard laboratory test for time distortions, which is the phenomenon of perceiving the passage of time differently depending on, in some cases, the pitch of what we are listening to. “Tubes handle the time domain slightly differently than solid-state devices,” he says, “and so, just on that listening basis alone, many people find that they prefer the sound of tubes.”

Charley Hansen probably wouldn’t agree with that last statement, but he’s definitely not a fan of bench testing to determine sound quality, although he has plenty of equipment designed to do just that. “We’ve probably got $100,000 worth of state-of-the-art test equipment at Ayre, but I have not found any single measurement that correlates with what you hear, not one. If you were going to measure something, I would say there’s only one thing to measure that makes any sense, and that’s the brain activity of the listener.” To learn how music affects our brains, Hansen recommends the PBS documentary “The Music Instinct,” which you can buy here.

In a way, Manley’s and Lam’s search for unamplified reference points through critical listening and product iteration is an attempt to get closer to what stimulates brain activity, and makes people like me think the sounds I’m hearing are warm. Once those reference points are established, Manley and Lam can listen to anything they like, stimulating their brains with jazz, techno, or whatever, secure in the knowledge that what they’re hearing is the real deal.

In other words, if they know what a soprano like Elly Ameling is supposed to sound like when accompanied in an unmicrophoned concert hall by a pianist like Dalton Baldwin, and if the recording they have of Ameling and Baldwin performing Schubert duets sounds accurate to Lam’s ears when played on an SG1.1 turntable by Spiral Groove (equipped with a Lyra Etna cartridge) that’s plugged into a VTL TP-6.5 Signature Phono Stage, which is connected to a VTL preamp called the TL-7.5 Reference Linestage before being sent to two VTL Siegfried Series II Reference monoblock power amplifiers, each of which is wired to its own Wilson Alexia loudspeaker, then it’s probably okay to be blown away by the sounds of Daft Punk pumping through the same gear.

As I was when I spent the better part of a morning with Manley and Lam at their home in Northern California, coincidentally close to where I happen to live. I had been talking over the phone with Manley about harmonics and with Lam about those listening sessions she subjects herself to in order to improve the circuitry in VTL products, but it was time to move beyond the rhetoric of sound and experience it. Graciously, Manley invited me to the couple’s home to hear what a good tube system could do to sound, and he even suggested I bring along a few of my own musical reference points so I could compare apples to apples.

Some of the music the author listened to at Manley and Lam's home on VTL amplifiers.

Some of the music the author listened to at Manley and Lam’s home on VTL amplifiers.

At Manley and Lam’s, we listened to music from a variety of sources—vinyl records, CDs, high-quality digital files—and from a range of genre, including jazz, classical, rock, Americana, and electronica. Among other things, I brought along my vinyl copy of “Speaking in Tongues” by Talking Heads, which I had purchased in 1983 in part for its hit, “Burning Down the House,” but also for its Robert Rauschenberg-designed packaging. I also came armed with a Hot Tuna CD, a reference point from the days when I was happy to have guitarist Jorma Kaukonen and bassist Jack Casady do their best to destroy my hearing at Winterland. And since we were going to be listening to analog gear, I brought some music by Mr. Analog himself, Neil Young, albeit a digital CD of his “Living with War” album, whose opening track, “After the Garden,” is introduced by a handsomely distorted, unaccompanied, three-chord electric-guitar riff that’s crowned by a textbook-perfect drum fill and punctuated by an emphatic cymbal crash.

I knew what this stuff was supposed to sound like, or at least I thought I did, until I got to Manley and Lam’s. There, we listened to an engaging Natalie Merchant tune off “Leave Your Sleep”; a haunting song by singer Rhiannon Giddens of the Carolina Chocolate Drops from “Lost on the River: The New Basement Tapes”; Cécile McLorin Salvant having a whole lot of fun with a jazz number called “Nobody”; an unreleased digital track by The Swell Season, the duo that won an Academy Award for a song from the musical “Once”; a portion of a Sibelius symphony; the aforementioned Ameling/Baldwin duet; pianist Grigory Sokolov playing Chopin; and violinist Anne-Sophie Mutter delivering a completely unironic rendition of that classical-music cliché, “Carmen Fantasy, Op.25 – 1. Moderato,” backed by James Levine conducting the Vienna Philharmonic. Plus, of course, Talking Heads, Hot Tuna, Neil Young, and Daft Punk (for what it’s worth, we heard “Giorgio by Moroder” rather than the insufferable “Get Lucky”).

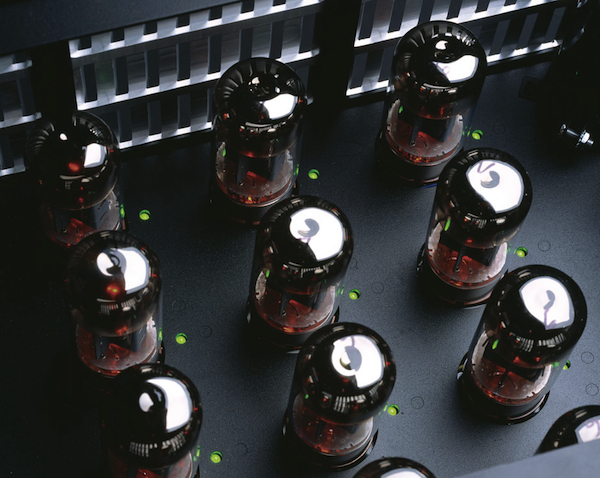

There are a dozen tubes inside a VTL Siegfried Reference Monoblock amplifier. The green lights indicate when the automatic bias is adjusting any individual tube, and also show which tube is bad in the event of a tube fault.

There are a dozen tubes inside a VTL Siegfried Reference Monoblock amplifier. The green lights indicate when the automatic bias is adjusting any individual tube, and also show which tube is bad in the event of a tube fault.

For me, Neil Young’s guitar had never sounded crunchier, Salvant’s intoxicating voice made me want to drop everything and start listening to jazz again, and I even momentarily forgave Daft Punk for those idiotic costumes they insist on wearing everywhere. This, I thought, is what music should sound like—bold, intoxicating, and alive, the audio equivalent of a crowd-drenching cannonball in a cold mountain stream on a hot summer’s day.

“It was flat,” Manley says, when I ask him a few days later to describe the sounds I had heard produced by his hardware and those Wilson Alexia speakers. “By flat,” he explains, “we mean flat frequency response, responding fully to the audio, whatever its frequency. The reason I stay away from words like ‘warm,’” he adds, “is mainly because when somebody says they’re looking for a warm-sounding amplifier, it suggests that the person is really looking for something that doesn’t do very much at high frequencies. Warm implies sound that’s rolled off at the top, which would be similar to saying it’s ‘sweet.’ It’s an overemphasis on the midrange, which is not what we’re after. Both warm and sweet immediately make someone think that tubes are necessarily retro or euphonic-sounding. I don’t think they have to be.”

But I like euphonic, I want warm, and I want a stereo that sounds like the one I heard at Manley and Lam’s, even though I’m pretty sure the almost 200-grand price tag for all that gear (“Oh, a budget system,” remarks Ken Kessler, when I tell him about my listening session) will eternally be beyond my means.

You don’t want that, says Charley Hansen.

“When you went over to Luke and Bea’s place,” he says, “I’m sure they had a killer-sounding stereo, probably a lot better sounding than your stereo, right? What you have to do is live with it for a few weeks, if not months, so that the thrill, that initial dazzle, wears off. Once the thrill is gone, you will have achieved the baseline for whatever level the system is. Now you are ready to really listen to it. That’s when you should put on your favorite song.”

The same sort of thing happens all the time, Hansen says, when people go shopping for stereo gear. “In a 5- or 30-minute demonstration in the sales room, the guy goes, ‘Wow, I want to buy that!’ But then he lives with it, and six months later it’s for sale on Audiogon.”

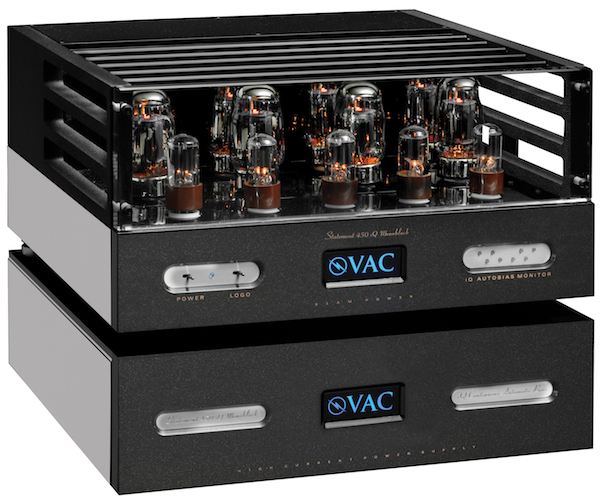

The VAC Statement 450 iQ alerts the user when its tubes are failing.

The VAC Statement 450 iQ alerts the user when its tubes are failing.

The problem, Hansen believes, is that people are too fixated on the gear and not enough on the experience the gear is supposed to provide. “Don’t be thinking about how the treble or bass sounds, or this or that detail, the ‘soundstaging,’” he counsels. “None of that matters. After the song is over, ask yourself, ‘Was I completely sucked in? Did I forget about everything else?’ Or were you thinking about the bills you need to pay, the deadline on this article. If you can get completely lost in the music, then it’s a really good stereo system. It doesn’t matter if it’s tubes, transistors, or a hamster on wheel. All that matters is that you got lost in the music. If you’re listening to music and your system doesn’t do that for you, your system is broken.”

I don’t know, Charley: I think I do want that. I’m pretty sure matching pairs of VTL Siegfried Series II Reference monoblocks and Wilson Alexias would improve the quality of my life, and I’d be willing to bet serious coin that I’d also be more than satisfied by the sound of a hi-fi powered by the VAC Statement 450 iQ, which is filled with eight KT88s, six 6SN7s, and will let me know when any of those tubes are about to go south. No doubt I’d also enjoy living with any of the R series solid-state products made by Ayre Acoustics, and it would be an absolute blast to go to Audio Classics for a day to hang out with Steve Rowell and compare the sound of an original McIntosh MC275 amp from 1961, the Gordon Gow Commemorative version of the 275 that was released in 1993, and the 275 the company is still making today. And last but definitely not least, it would be an audio dream come true to replace the seven 12AX7s and 11 other tubes in an old Fisher 500-C to see if it sounded anything at all like what I think I remember back in high school.

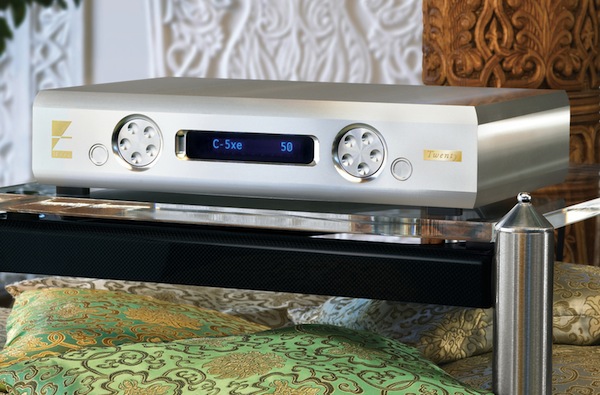

Ayre's KX-R Twenty may be the first solid-state amplifier to  reproduce a classic vacuum-tube sound.

Ayre’s KX-R Twenty may be the first solid-state amplifier to reproduce a classic vacuum-tube sound.

A week to the day after my listening session at Manley and Lam’s my grandmother died. She was 12 days shy of her 100th birthday, so her death did not have the same sense of tragedy that the premature departure of someone cut down in their prime would have had, and she had not been herself for years, so in many ways, her passing was a relief. Still, I was taken aback by how it affected me, even though it had hardly been a surprise. When it came time for me to say a few words at her funeral, I could barely speak.

Music would play a major role in my state of mind over the next few days, beginning the night after she died, when I decided to keep a date I had to see Willie Nelson, who was performing nearby. Sitting under the stars in a hillside amphitheatre, listening to opener Alison Krauss trade vocals and solos with guitarist Dan Tyminski and the other members of her band, Union Station, I wasn’t thinking about the bills I needed to pay, the deadline for this article, or even my dead grandmother. I was happily, blissfully lost in the music.

And then something else happened that was different than being lost, beyond even warm. At one point in Union Station’s set, Tyminski and the rest of the band left the stage, leaving Alison Krauss to sing an a cappella rendition of “Down to the River to Pray,” a traditional American gospel tune made popular in the film “O Brother, Where Art Thou?” For some reason, every time the song came around to the chorus when Krauss sang the words “Let’s go down,” I got a chill, goosebumps. It was like someone had flipped a switch, and it happened for the rest of the song, for all half-dozen or so return trips to the chorus, but only on the first mention of the word “Let’s,” which is repeated several times in the chorus. Always the first mention, always a chill.

I don’t know if it was tubes, transistors, or a whole lot of hamsters powering the PA system at that hillside amphitheatre, but at that moment, the sound of Krauss’s voice was definitely what I would describe as warm. No doubt my brain was making a connection between this song about praying and the death less than 24 hours before of a person who had meant a lot to me, but my grandmother was born in Bombay, was a practicing Sephardic Jew, had roots in northern Iraq, and could speak Aramaic, for God’s sake, so it’s not like a Southern American spiritual like “Down to the River to Pray” reminded me of her. For that matter, it barely reminded me of me, but somehow in that amphitheatre, the amplified voice of Alison Krauss was warming my heart. The moment didn’t have a thing to do with tubes or transistors—it wasn’t even about harmonics or reference points. I was lost in the music, regardless of what I was hearing, what you might choose to call it, or how it had been produced.

After the show, were my ears ringing during the walk to the car? Honestly, I don’t remember.
