    Posted 8 years ago

    debbiet
    (25 items)

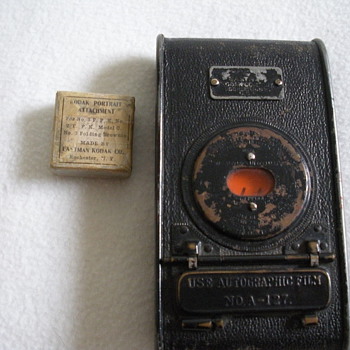

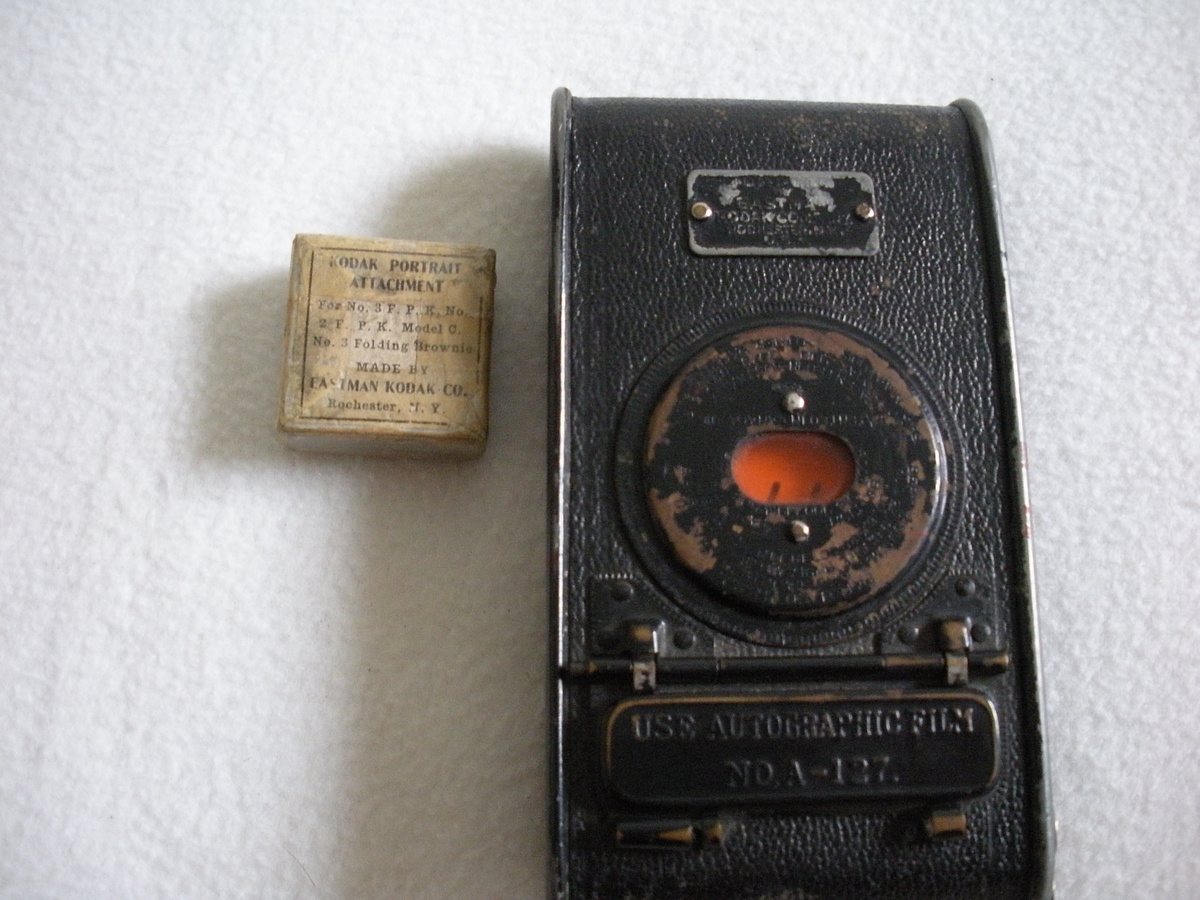

    Does anyone know anything about this type of camera. Its been in my family or a long time. ..........................................................................................................................................................................................................................................................

    Mystery Solved
    logo
    Kodak Cameras
    See all
    Kodak Beau Brownie No.2A Rose (pink) Vintage Camera
    Kodak Beau Brownie No.2A Rose (pink...
    $706
    Eastman Kodak 2D Whole plate camera with wetplate accessories and extras
    Eastman Kodak 2D Whole plate camera...
    $113
     5  KODAK METAL FILM CANS 35mm VINTAGE CANISTER - STORAGE, GEOCACHE, STASH
    5 KODAK METAL FILM CANS 35mm VINT...
    $15
    Eastman Vest Pocket Kodak 1912 Red Folding Camera
    Eastman Vest Pocket Kodak 1912 Red ...
    $63
    logo
    Kodak Beau Brownie No.2A Rose (pink) Vintage Camera
    Kodak Beau Brownie No.2A Rose (pink...
    $706
    See all

    Comments

    1. rniederman rniederman, 8 years ago
      This is more than likely a Kodak Vest Pocket Autographic Special. It was introduced in 1915 and discontinued late 1926. The picture size was 1-5/8 x 2-1/2 inches on 127 rollfilm. If you post a picture of the front showing the lens and shutter, I can narrow down the date.

      The autographic feature was invented by Henry Gaisman and appeared on many of Kodak's rollfilm cameras. The intent was for information to be 'written' on the film (through the hinged flap on the camera back) at the time the picture was taken with a fancy metal stylus. In summary, a somewhat common camera often found in excellent condition with the small stylus.
    2. debbiet debbiet, 8 years ago
      Thank you so much
    3. rniederman rniederman, 8 years ago

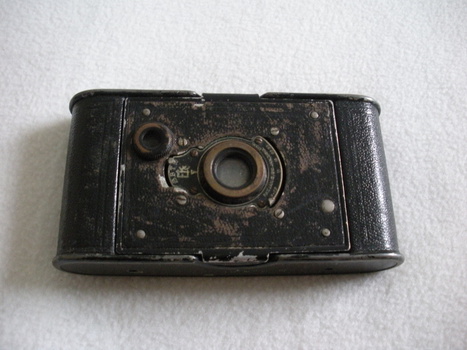

      The camera has an f7.7 Anastigmat lens (non-focusing). This was the most popular variation offered from April 1916 to September 1926. Hmmm ... it didn't narrow down the dates that much. BTW, the front extends via a bellows and struts when you pull forward on the two folded metal 'tabs' on either side of the front.
    4. debbiet debbiet, 8 years ago
      I don't have a stylus unless its attached to the camera and I don't see it.
    5. rniederman rniederman, 8 years ago
      The stylus is often lost. It would sit in the small pair of looped metal pieces at the top of the autographic door. The longer conical shaped loop is where the pointed end of the stylus sits. It's a distinctive item not just a straight piece of pointed metal. It is silvery in color with a spiral up the body and a small 'ball' at the top.
    6. gluepot gluepot, 7 years ago
      There is a small leg in the front plate which folds down when the bellows are extended, and engraved on the leg will be a serial number (I think). This might enable a more accurate dating. The flap over the Autographic window is of the "Second type," used first in 1916 and discontinued in favout of the "Third type" some time in the 1920s.
    7. debbiet debbiet, 7 years ago
      Thank you gluepot
