juts got this today help

In Tools and Hardware > Show & Tell and Petroliana > Show & Tell.
Tools and Hardware1415 of 2990Red Handle Sickle Hand Tool Hand Made In AustriaHowe scale 1867
6
Love it
4
Like it

ho2cultchaho2cultcha loves this.
SEAN68SEAN68 loves this.
musikchoomusikchoo loves this.
ManikinManikin loves this.
senchisenchi loves this.
BikensteinBikenstein loves this.
cindyjunecindyjune likes this.
trgrubaughtrgrubaugh likes this.
walksoftlywalksoftly likes this.
ttomtuckerttomtucker likes this.
See 8 more
Add to collection

Please create an account, or Log in here

If you don't have an account, create one here.


Create a Show & TellReport as inappropriate



Posted 2 years ago

Email

brassnut
(34 items)

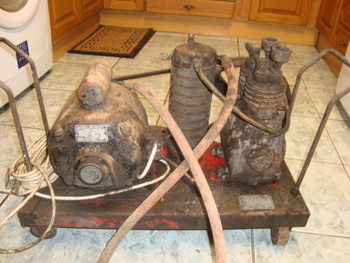

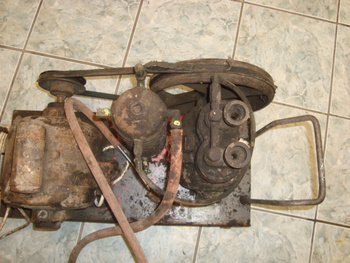

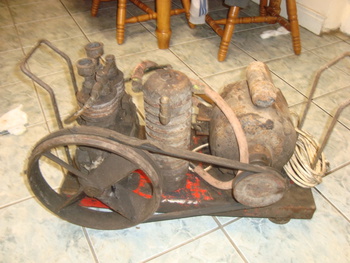

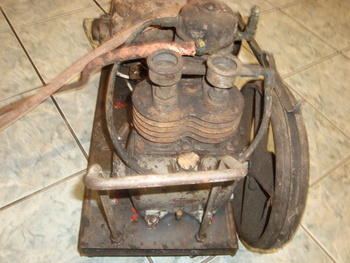

only got this today going get working on it,i know its a compressor i think a saylor beall ??????????? i dont have a clue about it ,but it works perfect,hope to run it of my lister d engine can ye help me out here with any info ye might have on it i,e, age i would be very greatful ,thanks anthony

Unsolved Mystery

Help us close this case. Add your knowledge below.

Comments

  1. blunderbuss2 blunderbuss2, 2 years ago
    All it needs is a wax-job.
  2. brassnut brassnut, 2 years ago
    i taught about how to clean it ,was going sand blast maybe ?????
  3. walksoftly walksoftly, 2 years ago
    Have you started cleaning it up yet?
  4. brassnut brassnut, 2 years ago
    no not yet ,im hopeing to find somebody with a sand blaster,i dont know where to start on it,as theres a lot of brass and copper fittings on it ,i dont want to damage it,would ya have any ideas,or info on it for me ,i cant find out how old it is???? ANTHONY
  5. walksoftly walksoftly, 2 years ago
    Don't sand blast anything that is aluminum, or brass those metals are too soft & the sand will embed itself in them.
    I would start by removing the compressor unit itself & clean it by hand.
    It looks like it is missing filters on the intake, the holders are there but there should be a fine screen in them at least.
    Whats on the name plate on the cart?
    Is their any ID plates on the compressor unit itself.

    David
  6. brassnut brassnut, 2 years ago
    ahh ok thanks for that,it says saylor beall on the cart,theres numbers on the compresser,i cant read will try later theres lots of oil caps as well on it,
  7. brassnut brassnut, 2 years ago
    sorry would you have a picture of them filters ,as i dont know what they look like,and i feel like a begger here,how much oil do i put in to it ???? thanks again anthony,
  8. walksoftly walksoftly, 2 years ago
    I did a quick search but a model number would help.
  9. brassnut brassnut, 2 years ago
    hi there im back,this is what i found on the plate,there are a couple more letters on the compressor its self,but here ya go hope ya can help me,it says
    THE SAYLOR BEALL M.P.G
    COMPANY COMPRESSOR,
    5 9 O K - P1122 ,WHAT DOSE MPG MEAN ? THANKS ANTHONY
  10. walksoftly walksoftly, 2 years ago
    I'm sure it should be MFG short for manufacturing.
  11. walksoftly walksoftly, 2 years ago
    59OK- p1122 was that on the cart or compressor & what are the other numbers you mention?
  12. brassnut brassnut, 2 years ago
    o im sorry the numbers,are of the plate on the cart,the other number, are on the compressor, i think they could be D 10 MAYBE ???
  13. walksoftly walksoftly, 2 years ago
    They did make a model D, if so there should be a serial number on the compressor, it should be four digit number starting with a 5 & preceded by a W, so it would look like W- 5???
    What is the diameter of the large flywheel/pulley on the compressor?
    What is the horse power of the motor?
  14. brassnut brassnut, 2 years ago
    hi again ,this is what i can see ,hope im right,on the compressor itself,
    591-k
    n
    on the motor its G/E COMPANY, MODEL 5KC 73AB 191A
    TYPE KC
    HP 3/4
    WHEEL SIZE 12 INCHES
  15. walksoftly walksoftly, 2 years ago
    I'm waiting on a response to an email I sent for some info for you.

    David
  16. brassnut brassnut, 2 years ago
    thanks David your been very helpful,anthony
  17. Bikenstein Bikenstein, 2 years ago
    You might want to try vapor blasting.
    http://ricerelics.com/index.html
    It doesn't work as well on castings as media blasting but it's great for other parts and won't damage them. Also soda blasting could be an alternative. Love the old compressor
  18. walksoftly walksoftly, 2 years ago
    I contacted a local dealer, the email I sent him is being forwarded to Saylor Beall, head office in the US but they are closed till next week.
  19. brassnut brassnut, 2 years ago
    thank cant wait to here back from you,
  20. walksoftly walksoftly, 2 years ago
    I contacted the local dealer again today, & his inquiries to Saylor Beall head office were in vain.
    If it's not in a computer they don't know what it is.
    On the air intakes install layers of screen to keep out the dirt & dust.
    As for oil in the crankcase use a straight 30 weight non detergent motor oil.
    DO NOT use a multi grade!
    Fill with oil to the center line of the crankshaft.

    Good luck & show us some picture when you get it hooked up to the Lister.
  21. brassnut brassnut, 2 years ago
    thanks ye are so good helping out here on this stite,as for the air intakes i cut the toes out of me wifes panty hose,come to think of it they look better on the compresser,
  22. walksoftly walksoftly, 2 years ago
    You're welcome brassnut, glad to help out, or at least try.
    I hope your wife knows about her panty hose, or it could be cause for some cursing when she goes to put them on.
  23. brassnut brassnut, 2 years ago
    happy xmas to ye all from ireland ye are all very helpful.
  24. walksoftly walksoftly, 2 years ago
    Merry Christmas, brasnut.
  25. brassnut brassnut, 2 years ago
    well hows ye all any one head over to the green land this year on yer holidays gis a shout
  26. walksoftly walksoftly, 2 years ago
    I wish I was, my great grandfather was from Ireland.
  27. brassnut brassnut, 2 years ago
    hows ye doin,where in ireland did yer g,g father come from
  28. walksoftly walksoftly, 2 years ago
    We're doing fine here, he was born in Schull or Skull, County Cork.

    Hows ye doin?

    David
  29. brassnut brassnut, 1 year ago
    hi all im back after many weeks, missed this site so much,any news,,,,,
  30. walksoftly walksoftly, 1 year ago
    No news from this location brassnut, did you get that thing hooked up to the Lister & pumping some air?
  31. jowejowe, 1 year ago
    Lovely compressor Brassnut, if you need any thing sandblasted just let me know and I will get it done for you at no cost whatever. I would think the compressor would look fantastic if it was stripped cleaned and painted. The other guy who said about sandblasting the copper and aluminium is dead right it would destroy them. Take care.
  32. brassnut brassnut, 1 year ago
    any idea of the tank size ?? what it hold ie,
